F150 and Super Duty Sync 4 12" Display Bracket

12" Sync 4 Screen Mounting Bracket

Doing your own 12" Sync 4 swap in a 2015-2020 F-150 or 2017-2022 Super Duty? This bracket kit lets you mount the OEM Ford 12" screen and APIM while keeping your factory radio and HVAC controls.

This bracket is designed for the factory Ford 12" display used in 2021+ F-150 and 2023+ Super Duty models. We officially support displays with part number LS120M5LX08 on the back.

If you are not sure whether your display will fit, send a photo of the back of the screen to support@oemplusupgrades.com and we can confirm it for you.

Fitment

• 2015-2020 Ford F-150
• 2017-2022 Ford Super Duty
• Designed for OEM Ford 12" Sync 4 display
• Supports display part number LS120M5LX08

Please select whether your truck has 2 or 3 button openings above the screen so we can send the correct bracket.

Why Use This Bracket?

• Mounts the OEM 12" Ford screen
• Keeps your factory radio controls
• Keeps your factory HVAC controls
• Avoids poorly fitting trim pieces
• Helps create a clean factory-style install
• Made from strong carbon fiber-filled ASA plastic
• UV resistant to help prevent fading over time

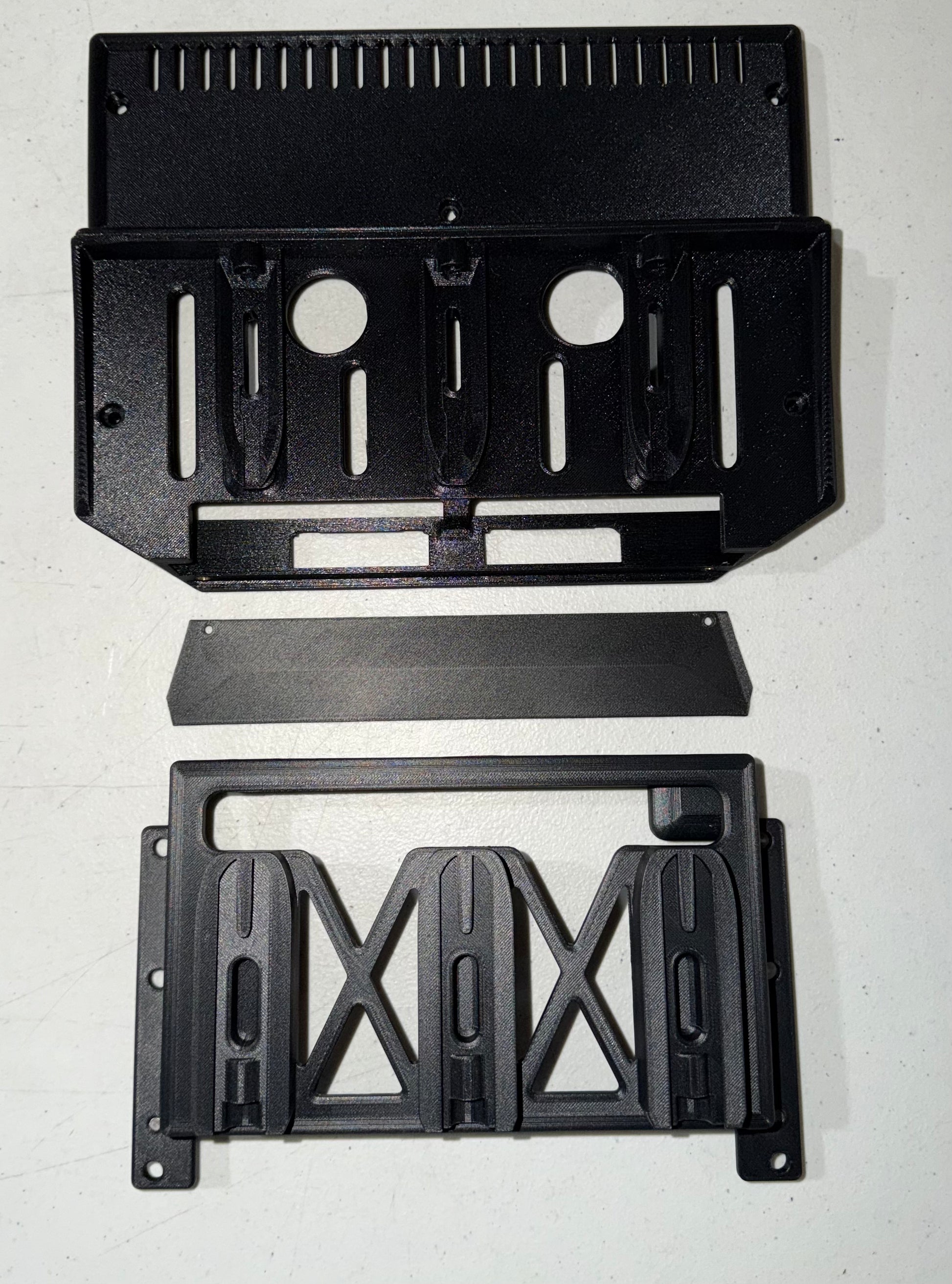

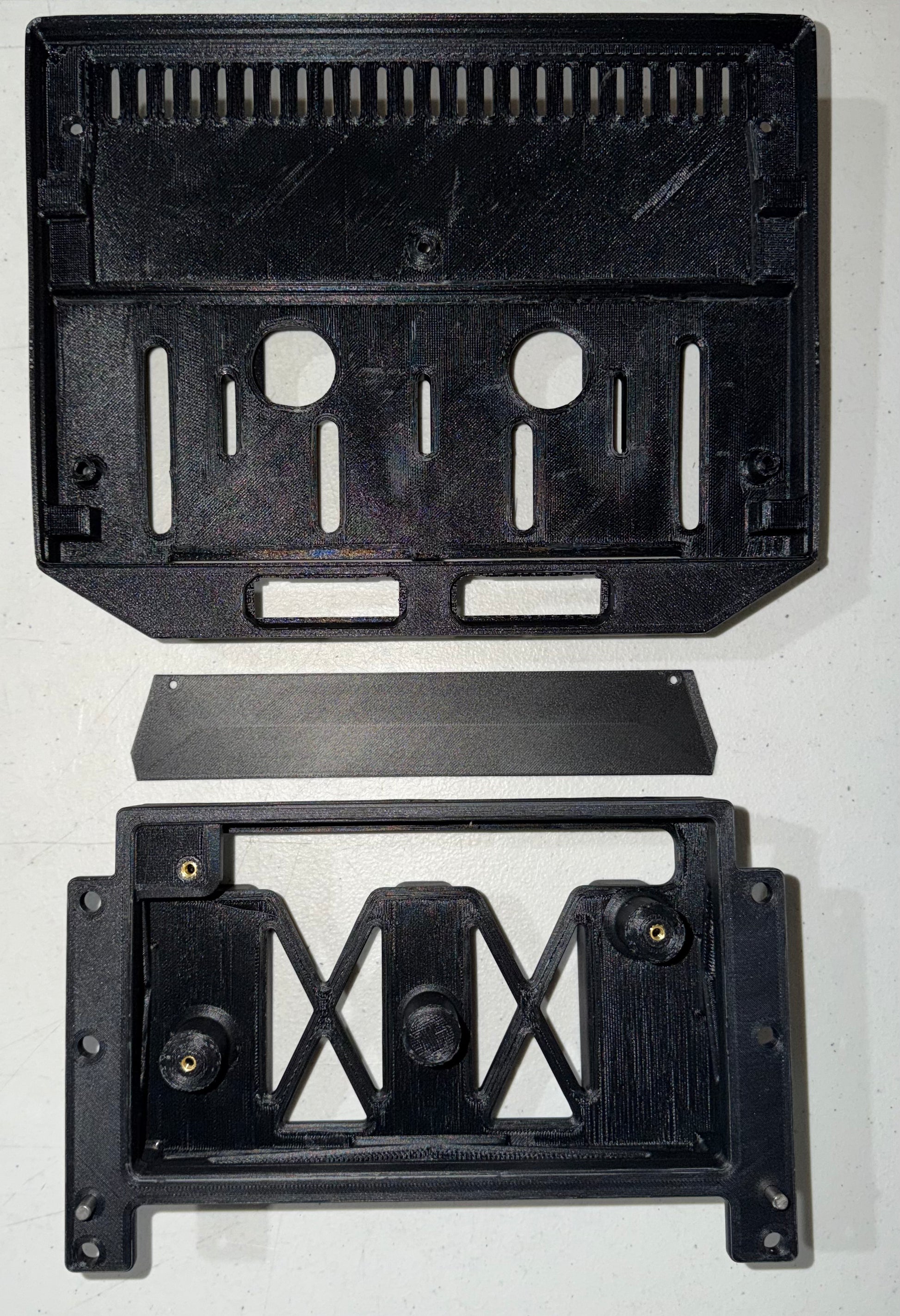

What’s Included

• APIM mounting bracket
• Screen mounting bracket
• Mounting hardware for the screen and APIM
• Optional display pre-installed, if selected

Not Included

No other parts are included. This bracket kit is intended for customers completing their own Sync 4 swap.

Important LVDS Cable Note

A right-angle LVDS cable is required where the cable plugs into the screen. Using a straight LVDS cable can damage the bracket, display, or cable during installation.

Damage caused by using the wrong LVDS cable is not covered under warranty.

You can purchase the right-angle LVDS cable here:

Right-Angle Large Format Display LVDS Cable

Warranty

Includes a 2-year warranty on the bracket set.
